YJJ 4O2-LF 053-0000-000 4 Series Electrochemical Hydrogen Cyanide Sensor Is Used In Field Of Industrial Safety

Product Description:

4O2-LF 053-0000-000 4 Series Electrochemical Hydrogen Cyanide Sensor Is Used In Field Of Industrial Safety

Features:

Product Description

This sensor is lead-free and is used to measure the concentration of oxygen gas. It can be replaced by the standard four-series oxygen electrochemical sensor through pins.

Performance parameters

Range: 0-25% vol oxygen

Maximum load: 30% vol oxygen

Output signal (20℃) -100 ± 20 μA (in air)

The response time (T90) is ≤ 15 seconds

Baseline (20℃) ±0.5% vol oxygen

Resolution: 0.1% vol oxygen

Linearity S=K loge(1/1-C)

Bias voltage -600 mV

Repeatability < 1%

Working environment

Temperature range: -40℃ to 50℃

The pressure range is 1 ± 0.1 standard atmosphere

Humidity range: 15% to 90%RH (no condensation)

Lifespan

Long-term stability < 5% signal value per year

Storage temperature: 10℃ to 30℃

Service life: 5 years (in the air)

Storage time: 12 months (in dedicated packaging boxes)

The warranty period is 36 months

Physical properties

Shell material: ABS

Weight: 5 grams

No directionality

The RoHS compliance has been certified as lead-free

Specifications:

4O2-LF electrochemical hydrogen cyanide sensor

Electrochemical hydrogen cyanide sensor

053-0000-000 electrochemical hydrogen cyanide sensor

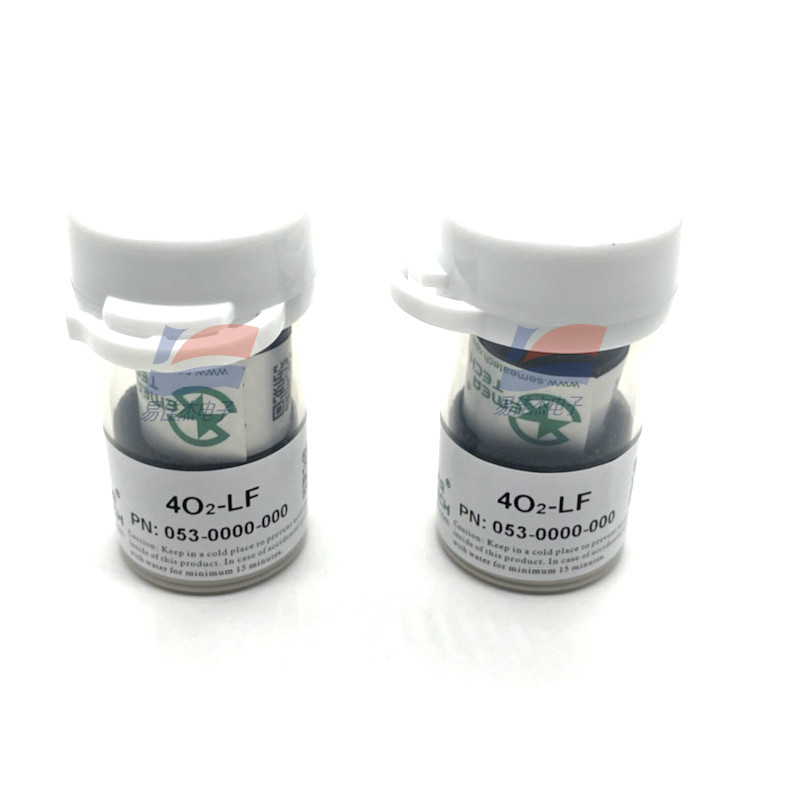

YJJ 4O2-LF 053-0000-000 4 Series Electrochemical Hydrogen Cyanide Sensor Is Used In Field Of Industrial Safety Images
